Mathematics/5. mathematical modeling

Doctor of physical and mathematical sciences Solovjov S.

Pacific National University, Khabarovsk, Russia

Modeling immersing of lithosphere plate in mantle

Results of numerical modeling of the convective heat exchange in the mantle are shown. Subduction zone is considered where collision of the moving lithosphere plate with the overriding continental plate occurred with subsequent subsidence of the oceanic plate along the trench which axis lies at an angle j to the land surface. As a result of numerical solution of the problem, using the Patankar’s control-volume-method, the fields of temperature, stream function, vortex, local Nusselt number at the upper and lower border of calculating area were received. The gravitational acceleration changed under the linear law.

Mantle convection is a principal driving mechanism of geological and geophysical phenomena we observe on the Earth. Many researchers of the mantle dynamics concentrate their effort on developing physical models using numerical simulation as a powerful tool to understand the dynamics of mantle convection. We have developed simulation to study dynamics of the Earth's mantle. The difficulties which the Earth scientists are faced, by all accounts, are caused by two reasons:

- difficulty to penetrate into the Earth's interior;

- loss of colossal information on the evolution of the Earth.

In spite of a great number of publications dealing with a study of the natural mantle convection, the questions concerning the character, structure and the primary reason for occurrence of the convection remain still open. In fact, the influence of convection on the geometry of plates and, also, differences in the character of convection caused by using the Newtonian and non-Newtonian models of Earth’s mantle, has not been studied yet. The paper considers model of the continuous convection of the lithosphere plate close to oceanic trench with regard for the heat of the phase transition. The subduction zone is considered, where lithosphere plate collides with continental, and then on a trough, which axis is located under an angle j to the land surface, is immersed in mantle. The depth of immersing of lithosphere plate in mantle is determined as a result of the task decision. It is accepted, that the gravitational acceleration on mantle depth varies under the linear law g = Ау + В.

Constructing the mathematical model, the following assumptions have been adopted: the lithosphere plate and the underlying mantle are considered as the non-compressible Newtonian liquid with a very high viscosity. The temperature at a boundary between the mantle and the plate is constant and equals to the temperature of solid state T_s. The thermal conductivityl, the viscosity of the substance m and the heat flux q_v are determined with account of their temperature dependence:

1.

Index 1 denotes the lithosphere parameters, 2 - the mantle parameters. The dependence of the density p on the temperature of the medium is assumed to be

2. Border between lithosphere and mantle is isotherm of solid phase with value of temperature Ts.

3. The relative quantity of the solid phase g (characterizing melting and crystallization of the substance) contained in the mantle or lithosphere is determined depending on the state of the substance (a solid state with a temperature T_S or a liquid state with a temperature T_L). The relative quantity of the solid phase g, depending of temperature, approximates by cubic spline:

At g < 0.95 it is assumed that the substance is in the melted (liquid) state, while at g > 0.95 - in the solid state.

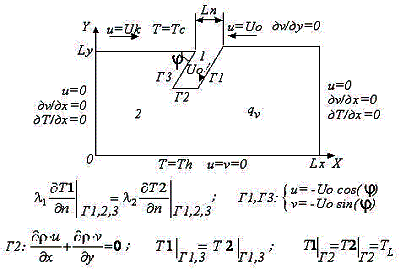

Fig. 1 shows physical setting of a problem. The horizontal oceanic plate moves towards the continental plate with a constant velocity U₀, and subsides in the asthenosphere in the trench zone at an angle j to the land surface with the same velocity. In turn, the continental plate moves towards the oceanic plate with a velocity U_k. Most often the lithosphere plates are subsiding in the subduction zones at an angle of 45°, though in some sectors of the island arcs the angles of subsidence from 30° to 90° have been marked. Here U_k - velocity of a continental plate, U₀ - velocity of oceanic (lithosphere) plate; index 1 – lithosphere parameters, 2 – mantle parameters; j - angle of immersing of oceanic plate; Г1, Г2, Г3 - right, lower and left border of a trench, on which the plate is immersed, accordingly.

Fig. 1. Physical statement of a task

Location of trough, on which the plate is immersed, is considered equal Lx /2. The lower border Г2, up to which the velocity of immersing of a plate is known, is determined on the interval of temperature melting. At achievement of melting temperature (liquid) T_L the lithosphere plate melts and depth of its immersing in mantle is determined.

The mathematical statement of a task describing convection in subduction zone includes the equations of movement of an incompressible liquid in the Boussinesq approximation, continuity and energy with account internal heat sources. The governing dimensionless equations can be written as:

,

,

.

.

,

H = [0;1] - the dimensionless mantle depth.

Boundary conditions:

= 0 at Y = 1; = 1 at Y = 0; at X = 0 and X = Lx/Ly.

, (k = 1,2,3) at border Г1, Г2, Г3 (fig. 1).

Q₁ = Q₂ at border Г1, Г3; Q₁ = Q₂ = Q_L at border Г2.

at X = [0; (Lx/2Ly - Lp/2Ly)]; Y = 1.

at X = [(Lx/2Ly - Lp/2Ly); Lx/Ly]; Y = 1.

, at X = [0; Lx/Ly]; at; at Y = 0.

at (fig. 1).

at Г1, Г3 (fig. 1) and inside a trench.

For intensity of a vortex W the boundary conditions were calculated with the use of boundary conditions for stream function. In accounts the non-uniform grid with a condensation in trench region and at the upper boundary of the area (Y = 1) was applied. Dimensionless local Nusselt numbers on top (Y=1) and bottom (Y=0) border of calculated area were determined by the expression (the derivative was calculated on three points with the second order of approximation).

The values of temperature at upper and lower border are accepted equal K, K. The extent of area on an axis х is accepted equal 3000 km, and on an axis y - 1000 km. Lithosphere thickness Ln - 100 km. The Temperatures of solid state Ts and liquid state T_L are 1800К and 1900К accordingly. Velocity of movement of a continental plate Uк = 1 сm/year, and velocity of oceanic plate U₀ changed in an interval 1 - 9 сm/year.

On fig. 2 the results of calculation for velocity of movement oceanic plate 1 сm/year and angle of a feat under continental plate 30^o are submitted. Re=1,05×10^-19; Gr = 3,2×10^-14; Pe = 251; Ste = 3.Gravitational acceleration value g = 9,8 is constant.

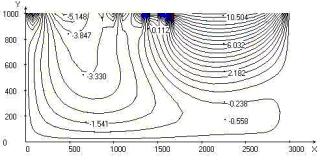

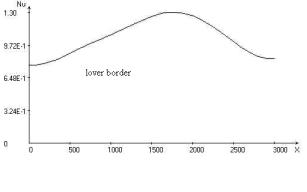

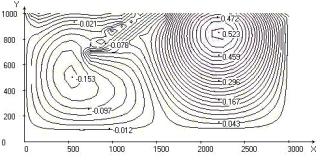

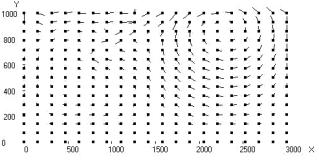

Fig. 2. Calculated fields for j = 30^o, Uo = 1: temperature; stream function; vortex intensity; velocity vector field; Nusselt number distribution on upper and lower border of the area

In trench region isothermals "bend" to lower boundary of the area (fig. 2). Under oceanic and continental plates two large-scale convective cells are formed, the liquid in which is gone in opposite directions. And besides convective cell and vortex under continental plate flow round immersed lithosphere and penetrate into area of oceanic convective cell and vortex, located to the right of subduction zone, moving them to the right. The depth of immersing lithosphere achieves value approximately 300 km. The distributions of Nusselt numbers on the upper and lower boundaries of the area are given. At value x ~ 1700 km (fig. 2) in the collision region of plates takes place minimum heat flow on the upper border of calculated area that will be agreed with known experimental data. On fig. 3 the results for velocity of movement oceanic plate U₀ = 5 сm/year are given. The depth of immersing achieves value approximately 400 km. Oceanic convective cell has practically completely superseded continental in area to the left of an axis of a trench (fig. 3). Re = 5,25·10^-19; Gr = 3,2×10^-14; Pe = 1255; Ste = 3; g = 9,8.

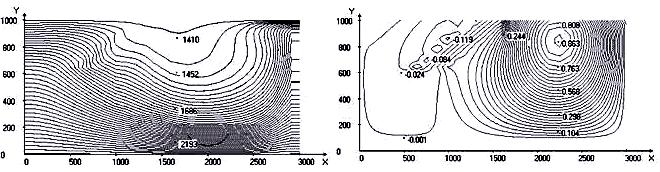

Fig. 3. Calculated fields for j = 30⁰, Uo = 5: temperature; stream function

On fig. 4 the qualitative picture of current of a liquid in a subduction zone for various angle values of a lithosphere feat is given. Velocity of movement of a continental plate Uk = 1 сm/year.

j = 60⁰ j = 45⁰ j = 30⁰ j = 15⁰

Fig. 4. Structure of flow current (lines of a stream) Uo = 1; g = 9,8

Analyzing the results of modeling we can make the following conclusion:

- not taking into account of buoyancy forces conducts to significant changes in the structure of current;

- the account of gravitational acceleration from mantle depth practically does not influence at thermal and hydrodynamical processes in subduction zone in comparison with a case when gravitational acceleration was to constants;

- the received results both quantitatively, and it is qualitative be agreed on depth of immersing of a plate in a mantle and under the law of change of a heat flow on a surface of the Earth with known experimental and theoretical results of others authors.

Thus, the suggested mathematical model and the results obtained contribute to the available information on investigation of convection in the Earth's interior and may be of use for better understanding and explanation of such phenomena as sea-floor spreading and subduction, lithosphere plate motion and heat flow change on Earth's surface.
