P.U. Ogeyenko, A.V.
Lozovyagin, V.V. Ogeyenko
National Mining University,
Dniepropetrovs’k, Ukraine
Decentralized
management for problem solution to
minimize specific
energy consumption
Modern development tendencies of automation technology are based on the
gradual transition from centralized control systems to systems in which the
control center does not exist. In such systems each node can be regarded as an intelligent,
because all devices itself make a decision for performing actions in management
of the actuators. This approach is known as decentralized control. It is based
on open information interaction within the group of network modules, in which
there is a division of control process for the number of subtasks. Each of them is
performed by the device directly connected with a separate actuator. Thus, to
achieve specific system goals at the
expense of solving local tasks is due to sub team members [1].
Using of decentralized control systems in coal-mining industry will
contribute to the objective of improving process efficiency by reducing
specific energy consumption in coal mining.
Selection of networking solutions is one of the basic
tasks in designing a decentralized management system. Technological objects for
which automation of is preferred to a decentralized approach may be generally
characterized by a number of factors: distributed in space, the complex
topology, a large number of sensors and actuators, interference
environment, use of equipment with different I/O interfaces, the need for rapid
response in accordance with parameters of sensors, large amounts of requested information.
Their presence greatly complicates the selection of universal solution for safe
communication channel in the system.
Thus, we can formulate a set of requirements for a
decentralized management system and in particular for their transmission
system:
1) a large extent;
2) high speed data exchange;
3) a wide range of topologies support;
4) high reliability and noise protection;
5) a large number of workstations support;
6) a wide data field in transmitted messages;
7) multimaster operation mode;
8) ease of design and reconfigure the network.
According to the analysis of several
well-known fieldbuses, which characteristics are summarized in Table 1, we can
distinguish CAN, Profibus DP, P-NET and LON. These network solutions most
suited for the requirements are listed above.
Table 1 - Industrial data communication systems characteristics
Field Bus |
Topology |
Wire |
Stations |
Work mode |
Segment length (max) (m) |
Speed (max) (kb/s) |
Data field (bit) |
AS-I |
bus/tree |
2 |
32 |
mono |
100 |
167 |
4 |
CAN |
bus |
2 |
64 |
multi |
5000 (10 kb/s) |
1024 |
to 64 |
Interbus |
ring |
2/8 |
255 |
mono |
400 (total 12800) |
500 |
64x8 |
Profibus FMS |
bus |
2 |
127 |
multi |
19200 (9,6 kb/s) |
500 |
246x8 |
Profibus DP |
bus |
2 |
127 |
multi |
1000 (12 Mb/s) |
12288 |
246x8 |
Profibus PA |
bus |
2 |
32 |
mono |
1900 |
93,75 |
246x8 |
Fip |
bus |
2 |
256 |
multi |
2000 (1 Mb/s) |
2560 |
32x8 |
Modbus plus |
bus |
2 |
32 |
multi |
1800 |
1024 |
32x8 |
P-NET |
bus/tree |
2 |
32+125 |
multi |
1200 |
76,8 |
56x8 |
FF H1 |
bus |
2 |
240 |
multi |
2000 (total 9500) |
31,25 |
246x8 |
FF H2 |
bus |
2 |
240 |
multi |
2000 (total 9500) |
1024 |
246x8 |
HART |
star/bus |
2 |
15 |
mono |
to 3000 |
1228 |
8 |
LON |
bus/tree |
2 |
64 (to 32000) |
multi |
6100 (5 kb/s) |
1228 |
228x8 |
However, each of the selected buses
for the task has its disadvantages. So there is no universal solution.
CAN-bus is mostly suited for a
decentralized approach in the technological objects management. It is
interesting from the standpoint of the channel access organization principles,
where the struggle for the channel
is based on the bus arbitration. The advantages include the growing popularity
of the CAN-interface management systems and, consequently, the producing of the
entire series of cheaper specialized controllers for this bus. In future,
systems based on the RS485 interface, will remain only in the lower price class
data devices, because they realize almost all the functions of packet software.
For developing data systems such construction can be a bottleneck, so
promising solutions based on dedicated bus controllers are justified now.
The main difference between CAN bus
and the existing standards is that the transmitted message frame has no address
for the receiving device, it only contains the identifier of the data packet.
The same package can be both read and used by a number of devices [2].
In addition, CAN-bus has a high noise protection,
which is based on a physical level (differential signal). The bus is
characterized as resistant to electrical and information overload, and has an
internal system of setting priorities.
The disadvantage of CAN in the organization
of decentralized control can be its bus topology. However, the use of
specialized routers and special organization of the data transfer protocol will
allow to use CAN bus for tree topology technological objects [3].
One of the main tasks to be solved in decentralized
management of a technological objects is to allocate limited resources [4].
When performing this task it is necessary to provide a broad and reliable
channel for step by step exchange of requests for a limited resource, which are
initiated by devices. At the end of each step unit involved in the exchange take
the decision to stop or continue the distribution based on the values
calculated due to requests. Thus, to test the CAN using possibility for the decentralized
approach organization, it is necessary to test the performance of the bus at
high load communication channel during step by step value exchange and correct
sum calculation separately for each node.
Physical model which presented in
figure 1 was designed and created for the experiment.
In the information exchange by CAN bus involves six CAN
nodes: an industrial controller that implements the functions of line adapter
for PC communication, and five CAN-compatible devices of the same type that
exchange data. Interaction between the PC and the adapter link is carried out
through the Ethernet 100BaseT interface based on TCP.
The software, allowing to monitor information in the CAN
segment, run by PC. Remote monitoring application is written in C++ programming
language to conduct experiments with the physical model of the system. It is based
on dialog application.
CAN bus is based on multimaster approach, whereby each
node in the network can transmit data at any time, regardless of other segment
devices. Possible conflicts are resolved through the use of dominant-recessive
approach for access arbitration. All transmitted frames begin with a unique
identifier, which also serves as the message priority. Furthermore, according
to the organization, all CAN devices are constantly in receiving mode, thus
allowing to monitor the data transmission progress. Synchronization of nodes is
based on the interframe bit sequences and on all devices tuning by receiving a
start-bit. Thus, for simultaneous transmission of frames by two or more devices
a bus will automatically be given to the host, who first set a dominant bit,
that is, to whose priority of the message above. Transferring for the remaining
devices will be suspended. Such bus access organization itself is
decentralized. It opens wide possibilities for performing the limited resources
allocating task.

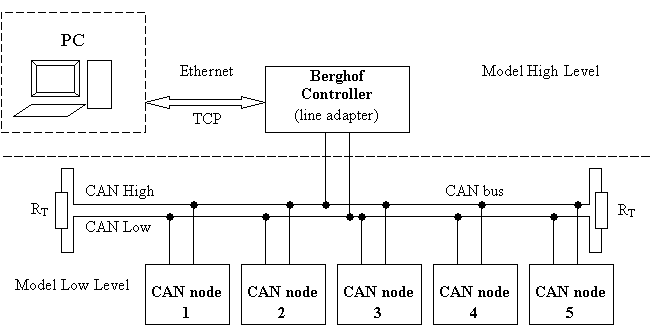

Figure 1. The block diagram model for experiments
Resource allocation process with not optimal initial
conditions may require more than a hundred steps, which means that the model
develops more than five hundred messages. There is evident need to comply with
the requirement of a fieldbus high-speed data exchange.
In accordance with the parameters of the experiments, all
five CAN nodes are incrementally transmit its unique request values and at the
end of the step to calculate their sum. Therefore, it is necessary to organize
a decentralized control over the light of all the values of a step is based on
CAN, because each device will not have information about number of nodes
involved in this exchange. We must also take into account possible heterogeneity
of the combined intelligent modules, which can lead to delays in calculating
the final amount before proceeding to the next step.
The graph-scheme (Fig. 2) shows the proposed approach for
solving the problem of the experiment. It describes the CAN bus segment node operation
algorithm during incremental data exchange.
Node program begins with the initialization of involved
modules, variables and flags according to their default values. Then, a timer
is switched on for the organization of the delay required to synchronize
devices with different intelligent modules (S1). The delay allows all involved
in the exchange devices to begin the next step at the same time regardless of
the time it takes to calculate the sum on each of them. Thus, the node goes
into standby mode for waiting of delay end or receiving data frame (S2).
Device, which calculation was made at the least time, exits first from this
mode and sends a frame with the current request value (S3), which triggers the
other nodes to the next step. In accordance with the specification of CAN, the
message is placed in the transmit buffer will be sent at a time when its
priority would be the highest on a bus. Through this approach, all nodes
involved in the exchange after putting a data frame in transmission buffer can
be go into event flags poll mode (S4). Sending / receiving message
events are monitored in this mode. In case of the frame sending event, it
checks whether it was a request frame or step ending frame (S5). When a step
ending frame was sent calculated sum is indicated on the display device (S8).
Sending event is marked by appropriate flag. Then receiving of the request
frame on the current step is checked (S6). If a frame has been received, then
the node re-enters in the flags poll mode. In other case indirect decision as
to this node was the first which managed to have sent a request. Thus, the
transmission of the current step ending frame is assigned to this unit (S7).
Then switching to the flags poll mode takes place. When the frame has been
received, its type is checked (S9). If this is a standard frame, the value of
its data fields added to the already calculated sum value (S10) and the node
enters in the poll mode. When a remote frame has been received, the receiving
of the request frame by the current step is controlled (S11). Then the value of
the calculated sum is displayed on the indicator (S8). Otherwise, the unit goes
into error mode (S12), which means that the unit could not send a request by
the current step. When the transition to a poll flags mode events occurred during
a frame receiving from the line, the timer is stopped (S13). If, during the
poll mode simultaneous sending and receiving frame events are registered, the
device goes into error mode (S14), which means that an intelligent device
module is too slow to ensure the realization of the task. After the calculated sum has been indicated during the
current step, the device goes into the set timer mode (S1).

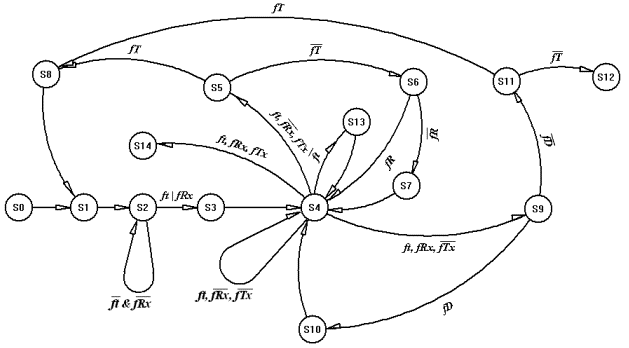

Figure 2. Graph-scheme of the step by step node data exchange via CAN bus
(ft – delay ending control flag; fT – request frame sending control flag;
fTx – frame transmission control flag; fRx – frame receiving control flag; fR –
frame receiving for whole step control flag; fD – standard frame control flag)
In the course of the experiment on a model segment nodes
incrementally displays the sum of the sended request values. The request values
magnitude at each step for different devices was opposed by 10 units. When
devices has gone to the next step values have been increased. Thus, each new
value of the sum was unique. CAN bus has been tested at all standard speeds.
Obtained in the course of the experiment characteristics
depending between the calculated sum and the current step had a linear
character. Without using the synchronization delay some nodes has gone into the
error mode.
The following conclusions are based on the results of the
experiment:
- CAN bus can be used to organize decentralized
management of technological objects based on the proposed step by step data
exchange approach;
- for the correct limited resources allocating by CAN on
the devices it is necessary to use synchronizing software delay.
References:
1. В.И. Варшавский, «Коллективное поведение
автоматов», изд. «Наука», Москва, 1973, 408 с.
2. CAN
Phisical Layer. – CIA. – 1999. – 43 p.
3. G.
Gruhler, G. Pivnjak, V. Tkachev, L. Tsvirkun, D. Poperechnyy, «Very large hierarchical
CANopen systems in mining», CAN Newslater 4/2004, 48-54p.
4. Г.Г. Пивняк, С.Н. Проценко, С.М. Стадник,
В.В. Ткачев, «Децентрализованное управление: Монография». – Д.: НГУ 2007. – 107
с.
